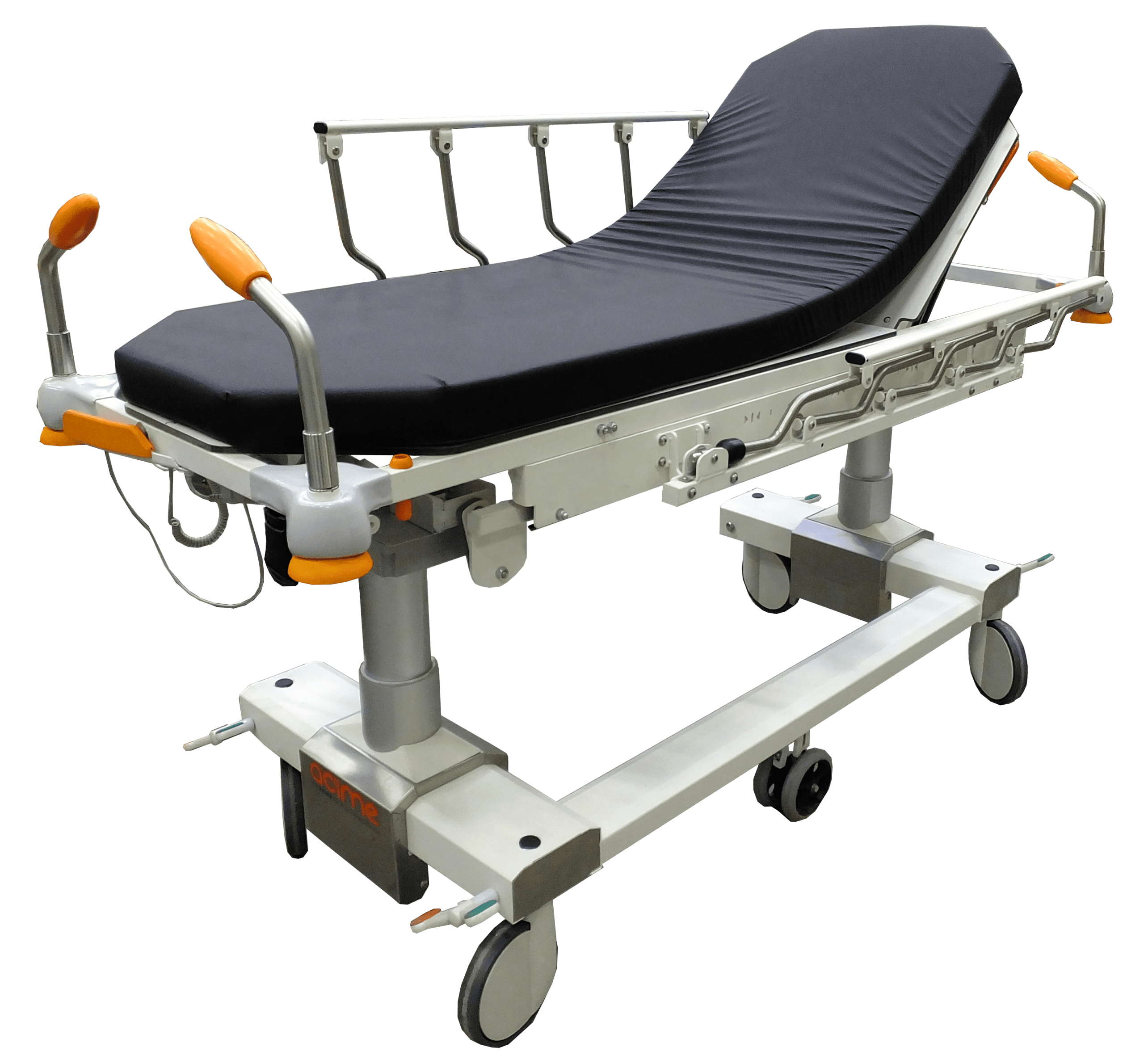

Skot Fluoroscopy


The Skot Fluoroscopy is designed to work perfectly with C-Arm imaging systems. It has an electrical sliding top which moves 400 mm towards both the head or foot ends. Electrical variable height, hydraulic backrest, retractable barriers, central braking and more. For a full list of features, options and accessories, see below.

  • Electrical adjustable height
  • Electrical sliding top – 400 mm each way
  • Hydraulic backrest
  • White epoxy steel frame
  • Omnidirectional wheels ø200 mm
  • Retractable 5th directional wheel
  • Centralised braking (2 pedals)
  • Vinyl mattress 8 cm M1
  • 4 anti-shock bumpers Ø130 mm
  • 4 IV pole supports
  • 2 “Perfect Transfer” collapsible barriers
  • 4 folding push handles
  • 4A Battery
  • Overall Size Length 2270mm x Width 860mm
  • Mattress Size:
    • Length 2000 x width 720mm (thickness 80mm)
  • Variable Height 595mm to 980mm
  • Trend +/- 10°
  • Backrest 0 to 85°
  • Wheels 200mm with centralised brakes
  • Weight Capacity 240kg
  • Telescopic IV pole
  • Accessory rails (pair)
  • Ultra-comfort mattress with anti-slip underside (11cm thick)
  • Transfer mattress (4 or 8 cm thick)
  • 10A battery
  • Available in a hydraulic version
